Recessed Aluminum LED Profile Wide Flanged Architectural Linear Lighting Channel with Diffuse

Product Introduction

Architectural-Grade Recessed Design: Specifically engineered for plasterboard, drywall, or ceiling recessing. Features a prominent 90mm flanged wing (75mm base width) that elegantly covers cutting imperfections for a flawless finish. • Ultra-Wide Double-Row LED Track: Designed with a massive 58.8mm interior channel width, comfortably accommodating double or triple rows of high-density LED strips for high-output, main-ambient architectural illumination. • Perfect Dot-Free Diffusion:

Overview

MODEL	PICTURES	INSTAL METHOD	POWER（W)	LED	Luminous EfficiencyLM/W	PF	INNER SIZE	PC/CN	SIZE（mm）	Noted
ALP909		recessed	36	SMD 2835/180	90	PF≧0.5	123911	6	120010080	Chip‌: San'an 2. ‌Driver‌: Isolated Driver 3. PF value can be customized to >0.9, with separate quotation required 4. ‌Voltage‌: 85-265V 5. Standard lamp body color is silver; separate quotation is required for other custom colors 6. Customized dimensions are available, with separate quotation required。。

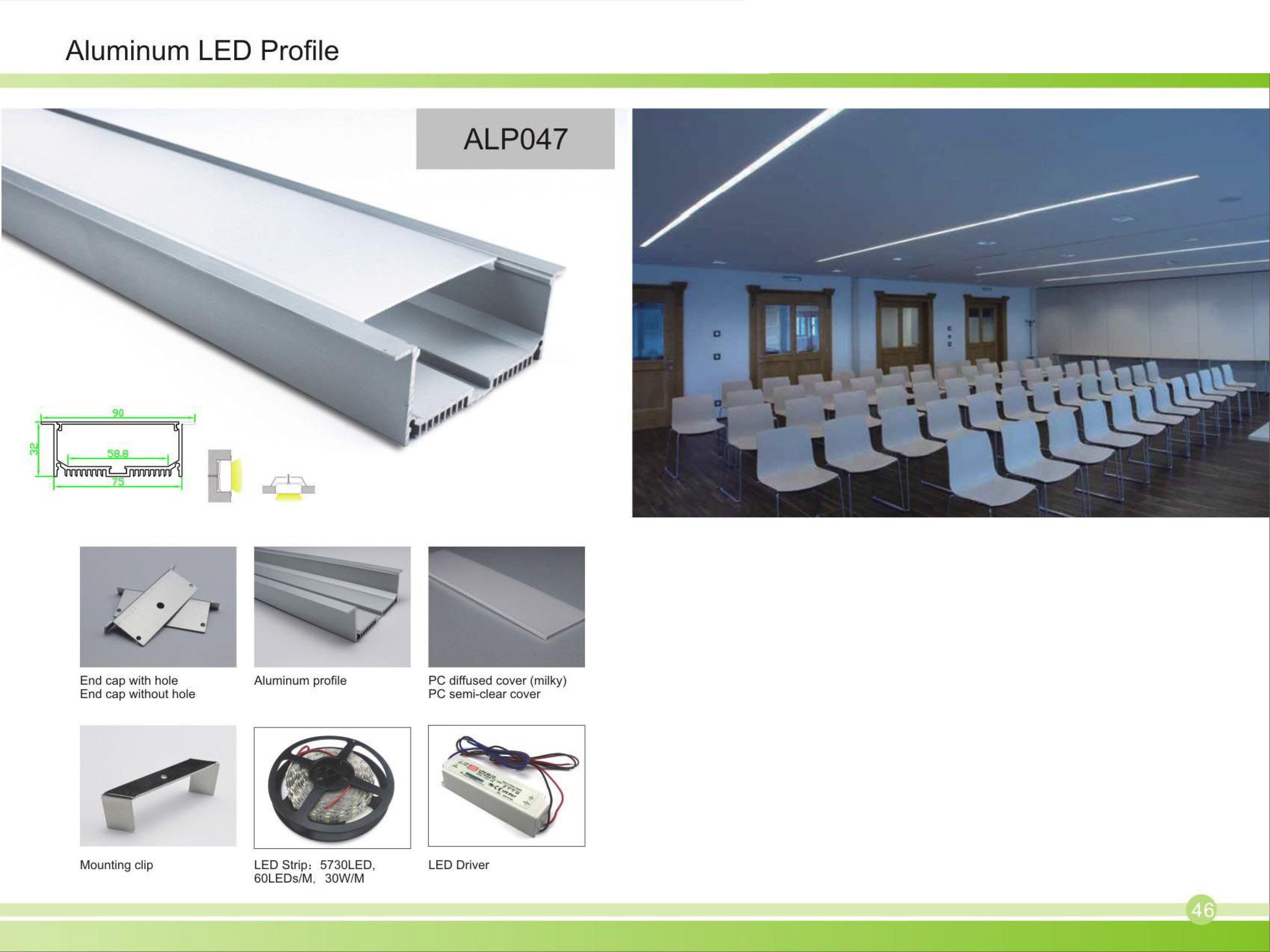

ALP047		recessed	36	SMD 2835/180	90	PF≧0.5	135410	10	12009032

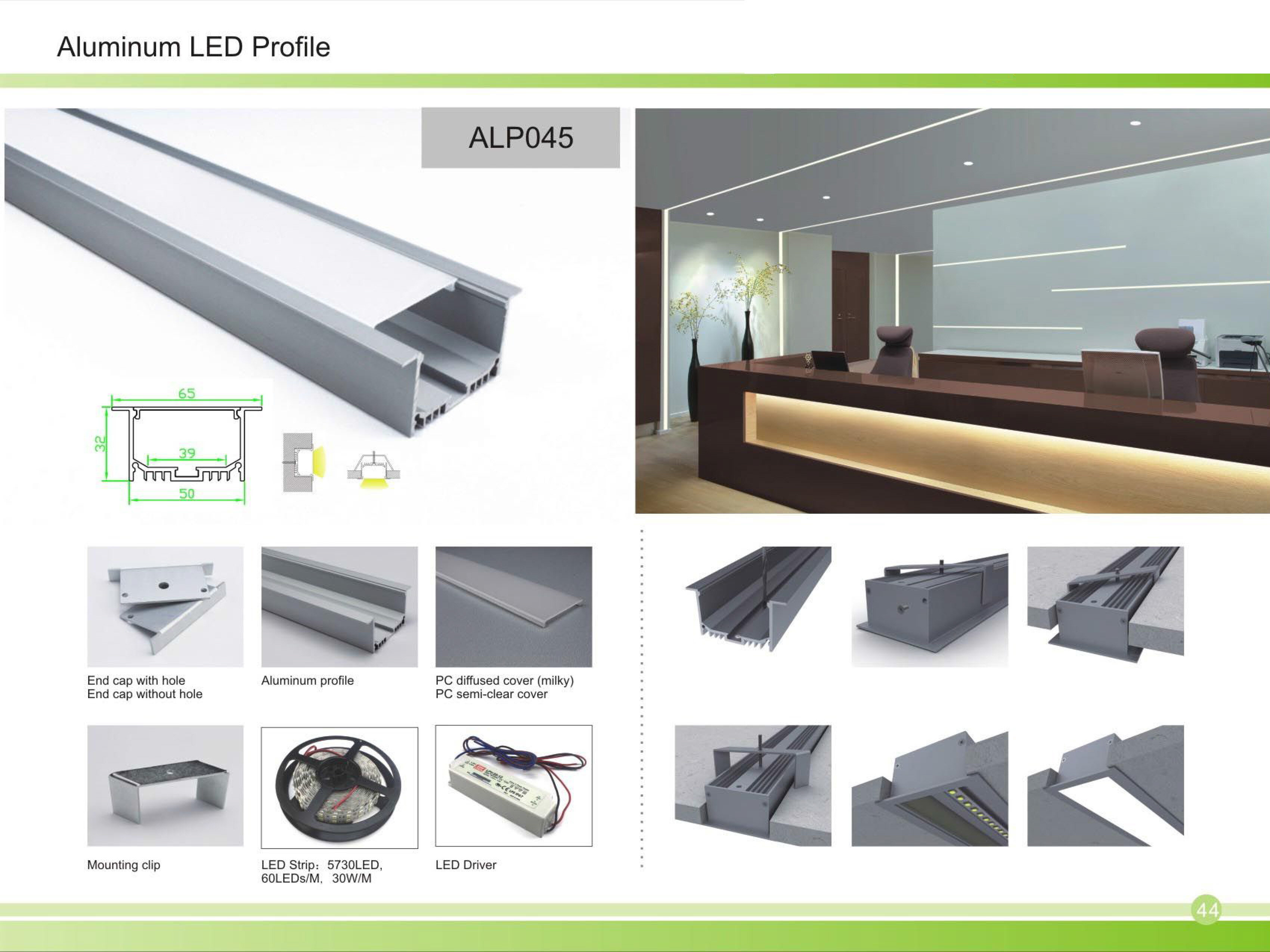

ALP045		recessed	36W	SMD 2835	90	PF≧0.5	13547.2	15	12006532

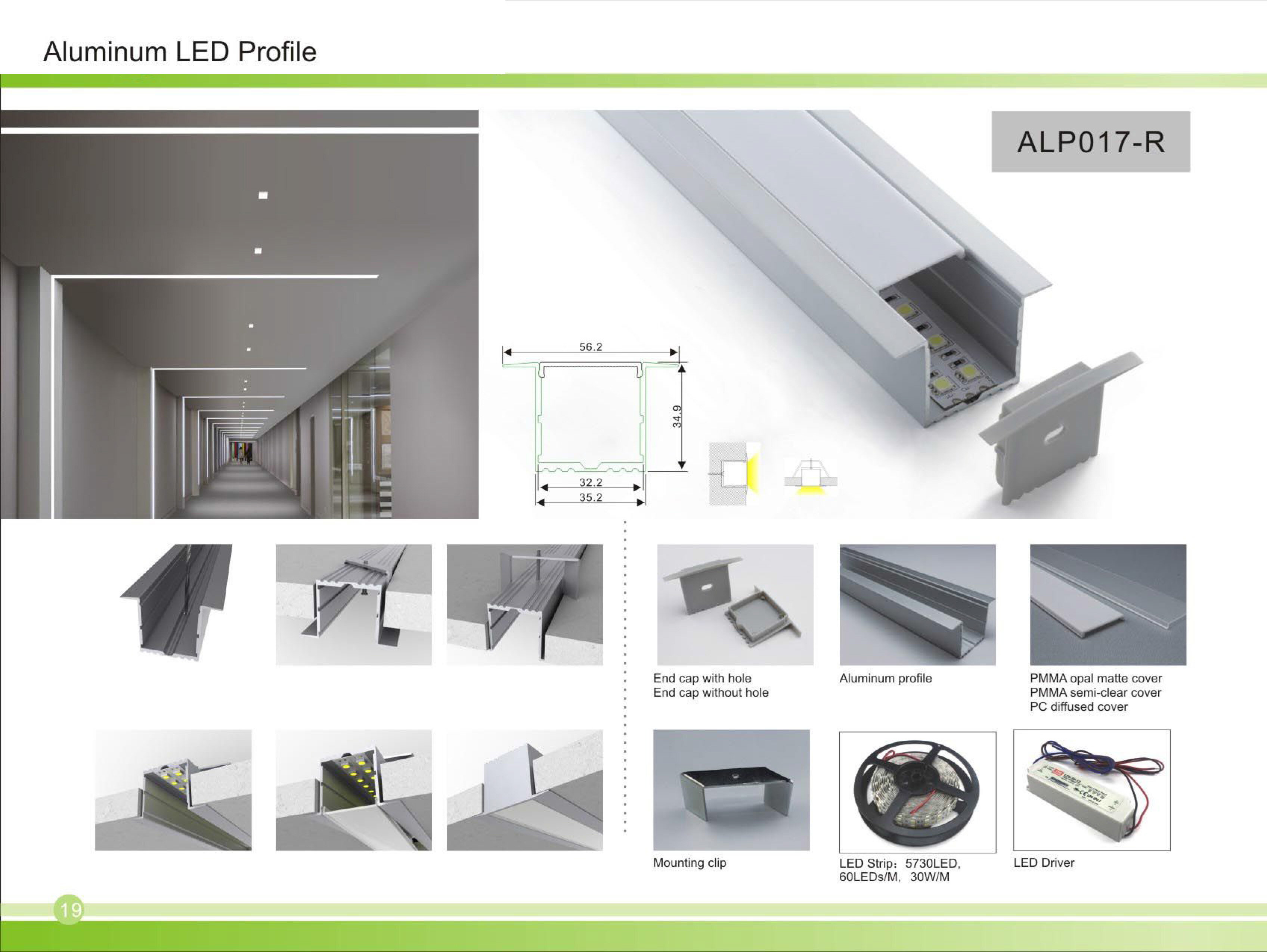

ALP017-R		recessed	36	SMD 2835/180	70	PF≧0.5	1234.26.3	20	120056.234.9

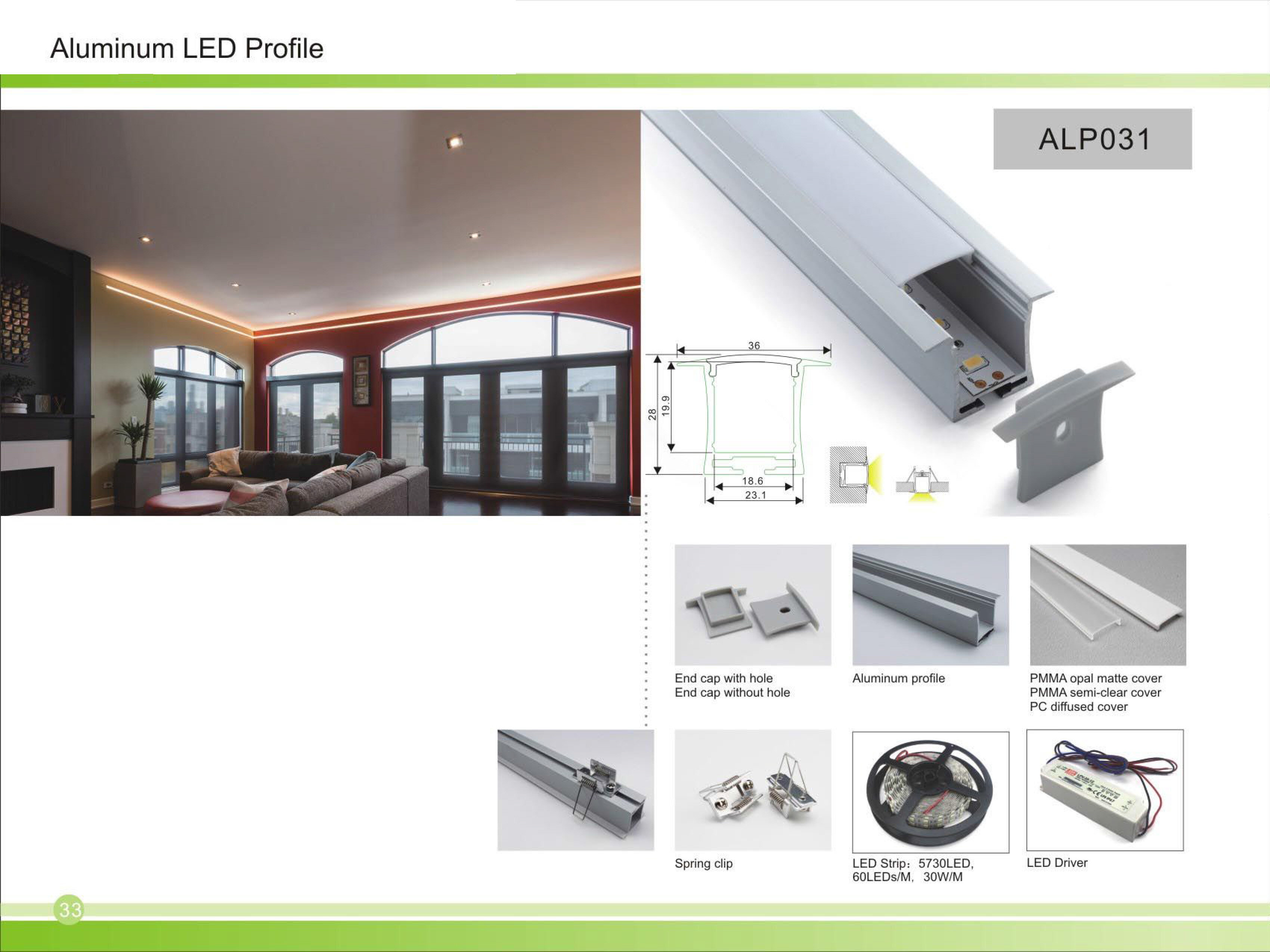

ALP031		recessed	18	SMD 2835/180	70	PF≧0.5	1353.44.2	20	12003628

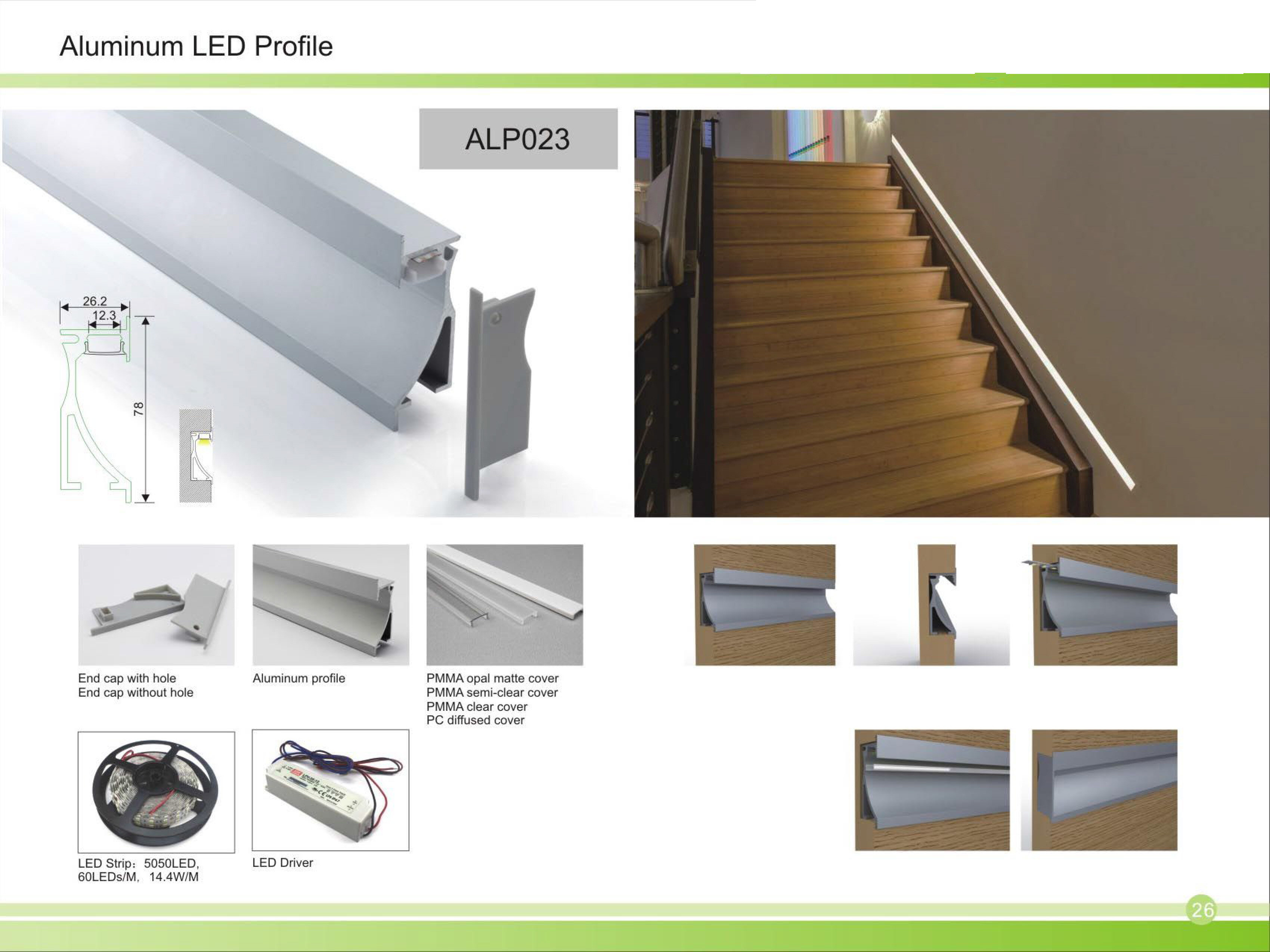

ALP023		recessed	36	SMD 2835/180	70	PF≧0.5	1238.53.3	12	12007826.2
