UGR19 EDGE-LIT LED PANEL LIGHT

Model

Spec

Wattage-5%

Efficacy
(L mw)

Lumens
  4/-5%

Rated Input
Voltage

Output

Frequency

TCK-0606-40

  600×600
   595x595mm

40W

100

 4000

200~240Vac

27~42Vdc
900mA

50/60Hz

TCK-1203-40

1200×300
1195x295x10mm

40W

80

 3200

200~240Vac

27~42Vdc
950mA

50/60Hz

TCK-1203-40H

40W

100

 4000

200~240Vac

27~42Vdc
900mA

50/60Hz

TCK-062062-40

620×620
620x620x10mm

40W

80

 3200

200~240Vac

27~42Vdc
950mA

50/60Hz

TCK-062062-40H

40W

100

 4000

200~240Vac

27~42Vdc
900mA

50/60Hz

Model

PF

CRI

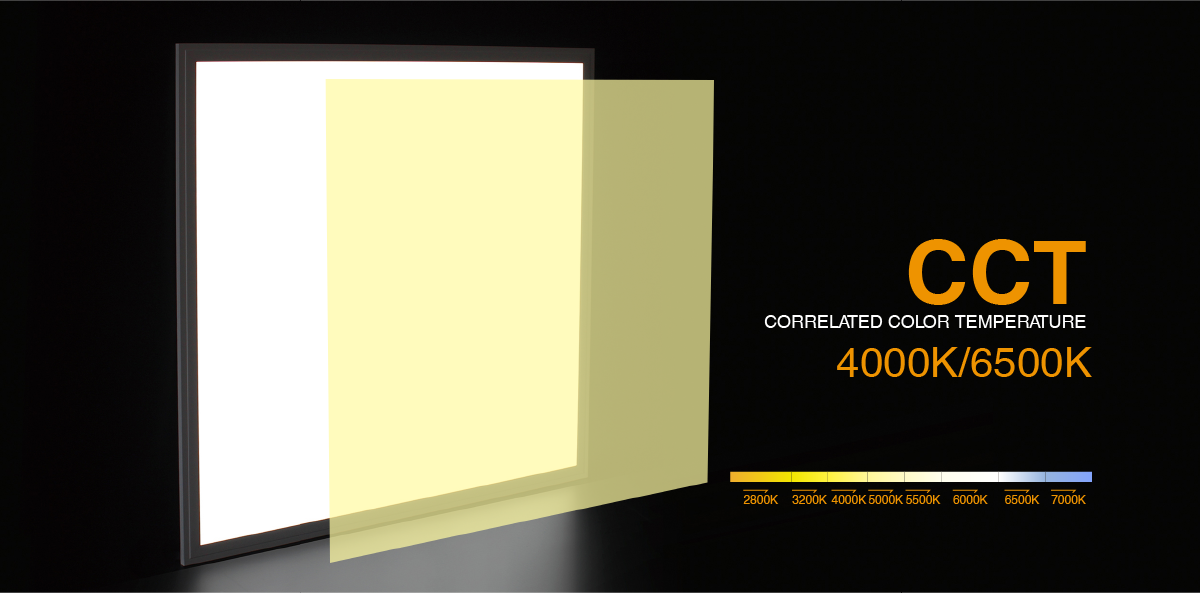

CCT

 LM-80
SMD Type

No.of LEDs

SDCM

IP
Rating

 LED
Lifespan

TCK-0606-40

0.90

Ra≥80

4000K/6500K

SMD 4014
 gcid wire

224   Leds
(1 4Sx16P)

≤5

40

50,000Hrs

TCK-1203-40

0.90

Ra≥80

4000K/6500K

SMD 4014
 gold wire

144  Leds
(12Sx12P)

≤5

40

50,000Hrs

TCK-1203-40H

0.90

Ra≥80

4000K/6500K

SMD 4014
 gcld wire

224  Leds
(1 4Sx16P)

≤5

40

50,000Hrs

TCK-062062-40

0.90

Ra≥80

4000K/6500K

SMD 4014
 gold wire

192  Leds
(12Sx16P)

≤5

40

50,00OHrs

TCK-062062-40H

0.90

Ra≥ 80

4000K/6500K

SMD 4014
 gdld wire

224  Leds
(1 4Sx16P)

≤5

40

50,000Hrs
