Professional Commerical Lighting/LED Linear & Batten

LED Linear Wall Profile – Surface & Flush Mounted Linear Lighting Channel

Product Introduction

Architectural-Grade Aluminum: Extruded from high-density, anodized aluminum alloy (Model ALP050) for superior heat dissipation, guaranteeing a prolonged lifespan for your LED strips. • Seamless Plaster-In / Surface Integration: Features a specialized layout flanged wing (48.5mm total height) designed for elegant wall-to-ceiling framing, micro-cement styling, or integrated baseboard/skirting night light wash. • Dot-Free Smooth Diffusion: Accompanied by a premium frosted polycarbonate cover, expan

Overview

Wall  Mounted

序号

MODEL

PICTURES

INSTAL METHOD

POWER（W)

LED

Luminous EfficiencyLM/W

PF

INNER SIZE

PC/CN

SIZE（mm）

Noted

15

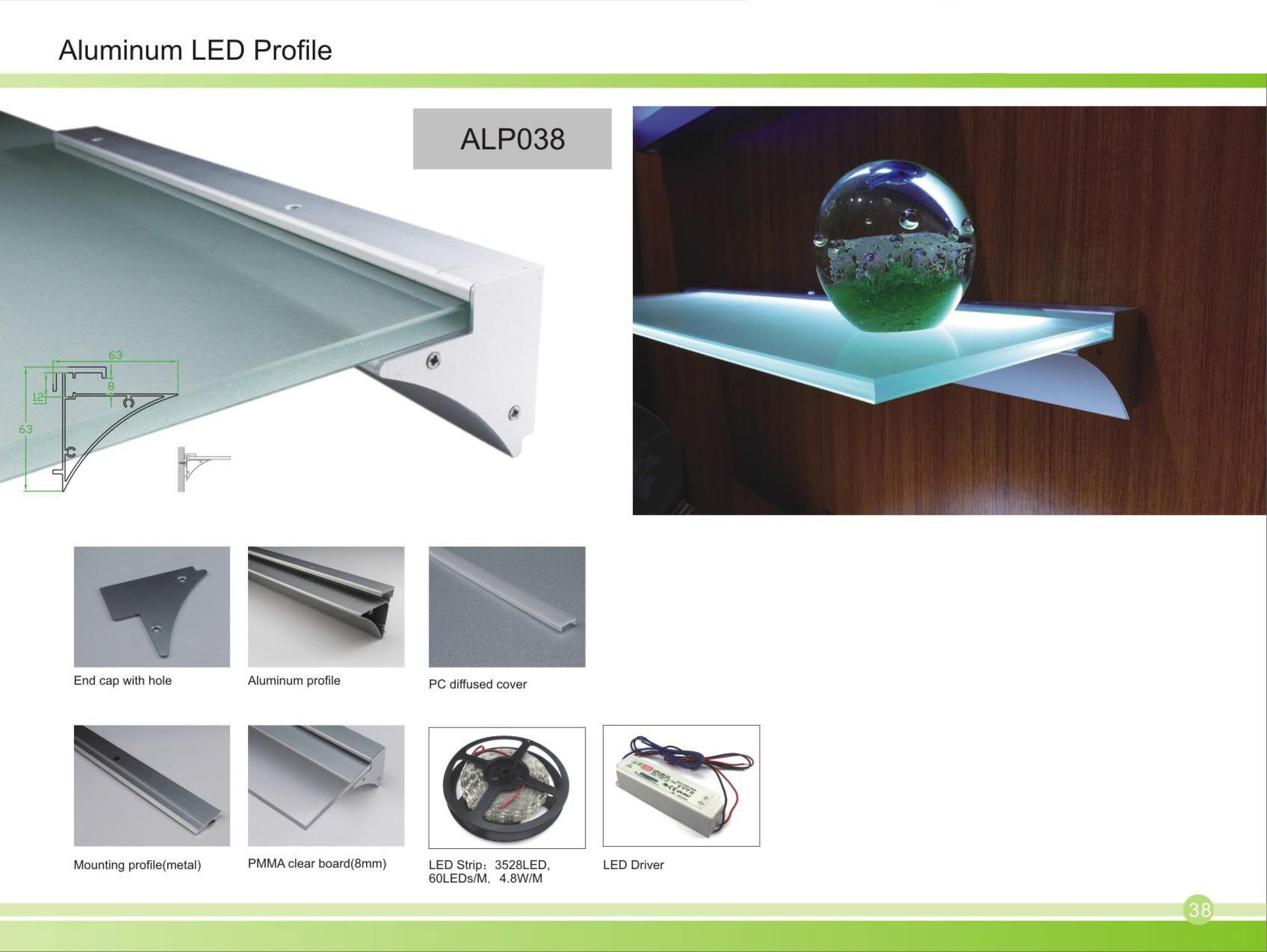

ALP038

Wall  Mounted

3

SMD
2835/15

60

PF≧0.5

29*9*22

10

200*192*58

Chip‌: San'an
2.
‌Driver‌: Isolated Driver
3.
PF value can be customized to >0.9, with separate quotation required
4.
‌Voltage‌: 85-265V
5.
Standard lamp body color is silver; separate quotation is required for other custom colors
6.
Customized dimensions are available, with separate quotation required。

16

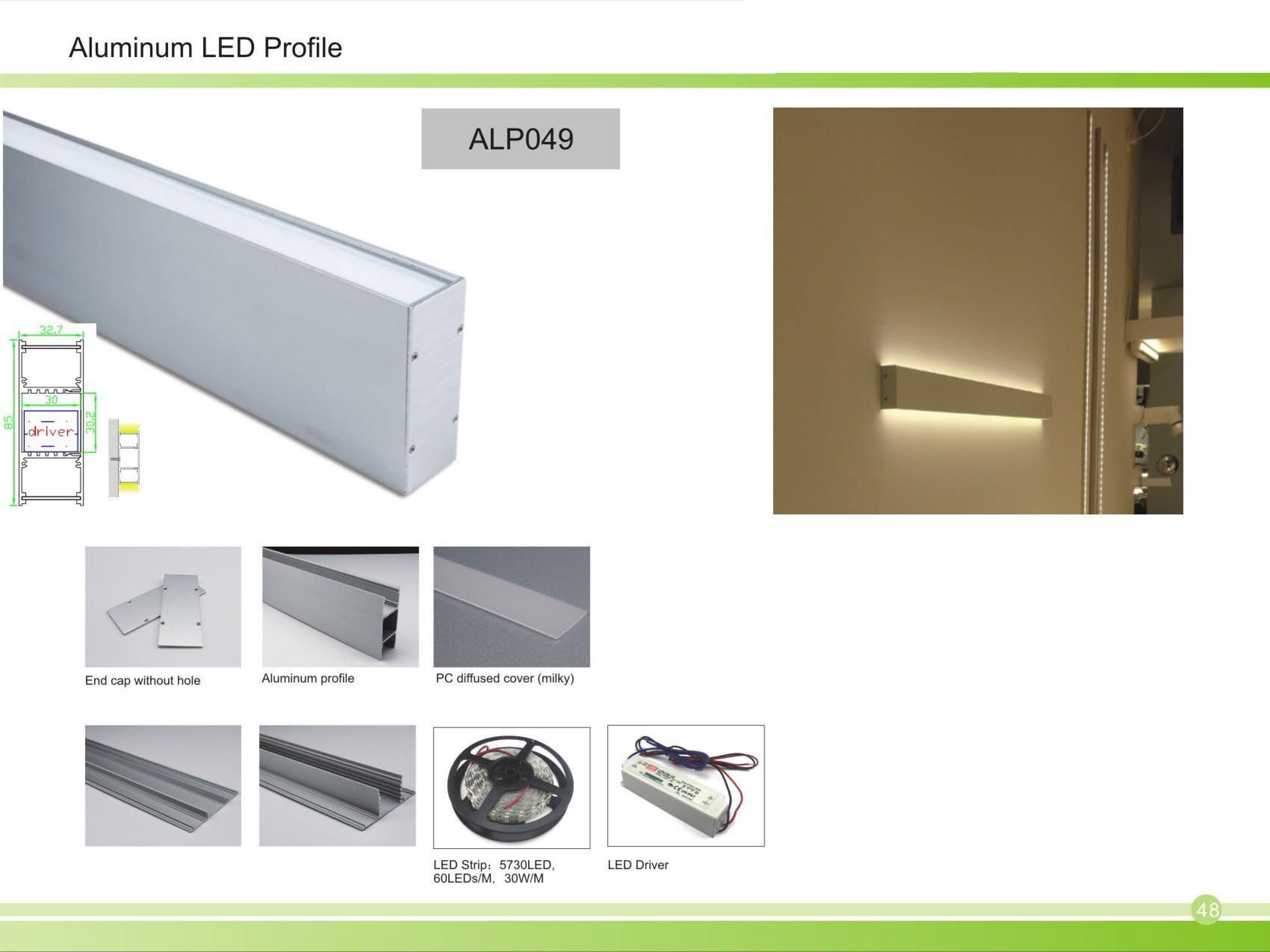

ALP049

Wall  Mounted

36

SMD
2835/180

90

PF≧0.5

123*4*9.2

10

1200*32.7*85

17

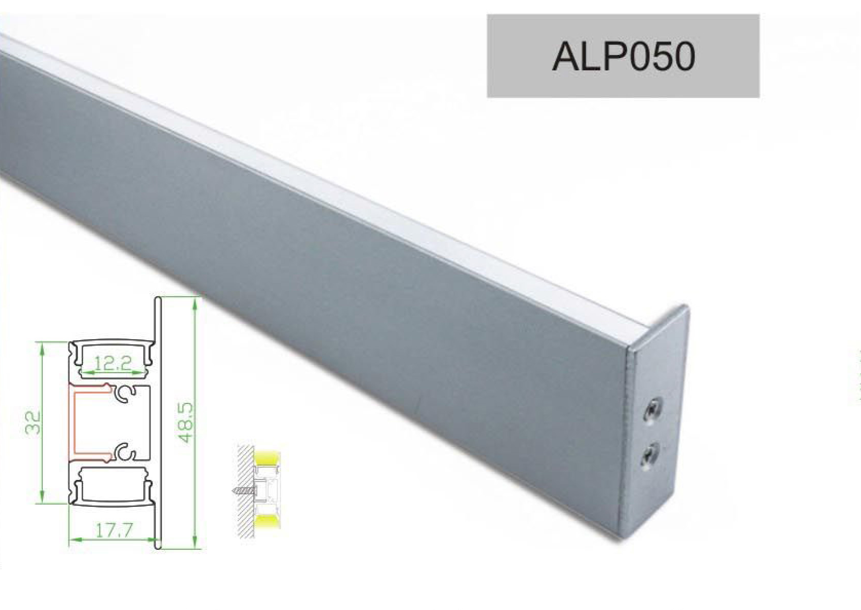

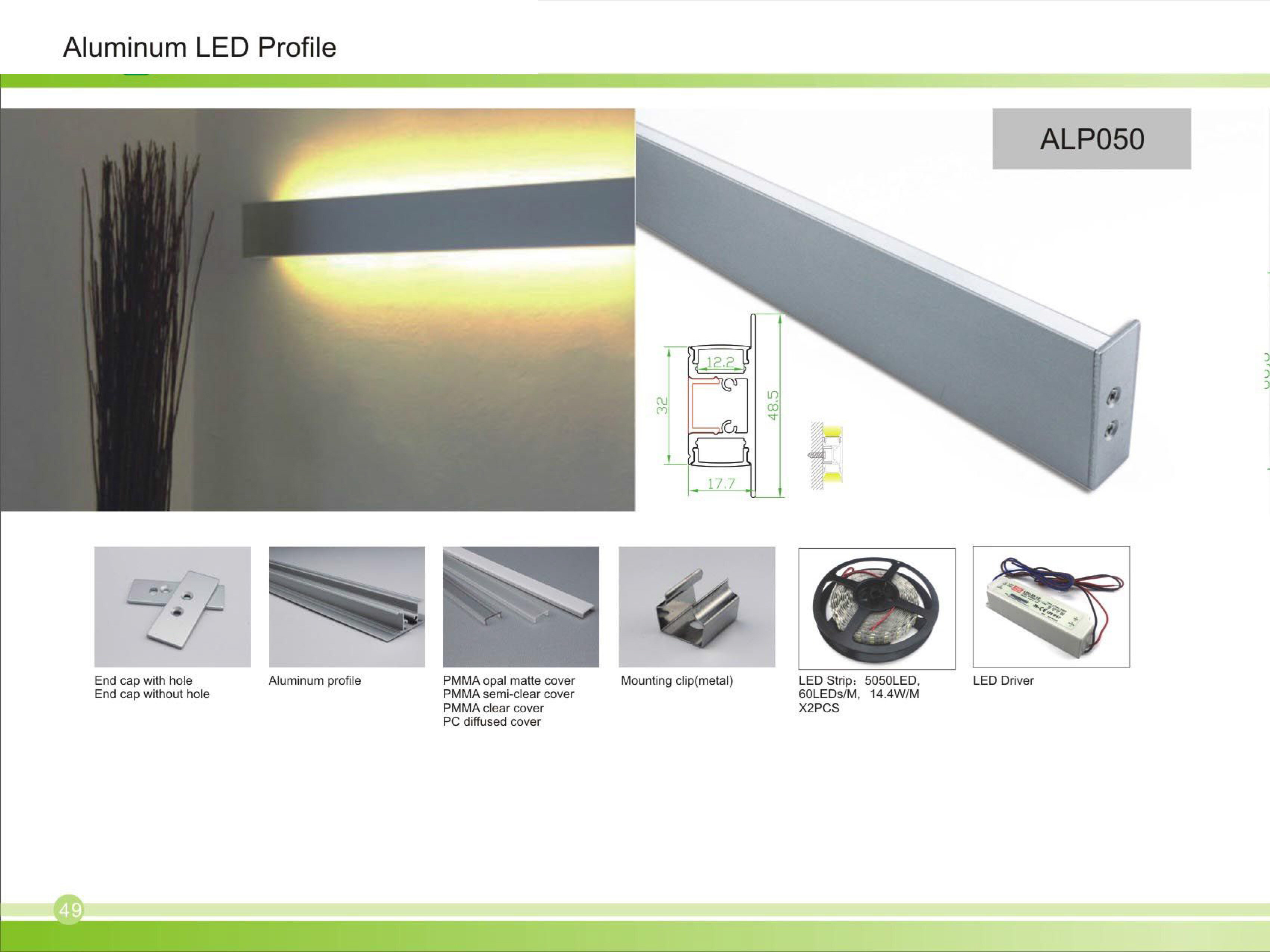

ALP050

Wall  Mounted

36

SMD
2835/180

90

PF≧0.5

135*2.5*5.6

20

1200*17.7*48.5
